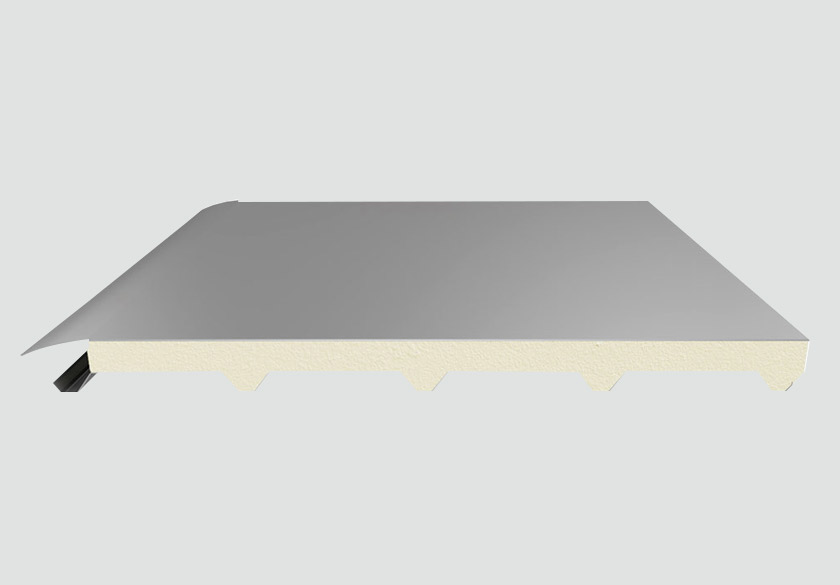

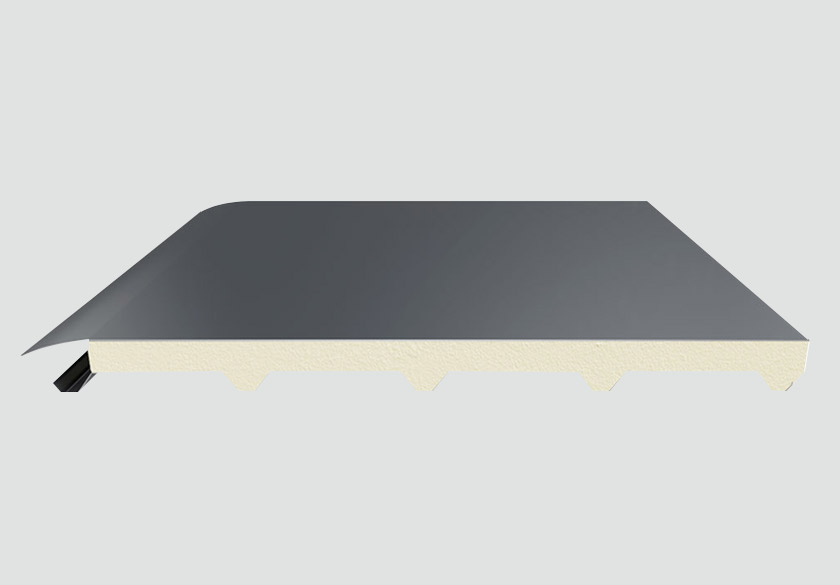

5 Ribs Membrane Roof Panel

5 Ribs Membrane Roof Panel

Our roof panels, designed to provide maximum thermal insulation of flat and low-slope roofs created with space cage and similar steel roof systems, attract attention with their 5-rib membrane structure. These panels, whose lower surfaces are coated with TPO or PVC, provide an ideal basis for applying membranes. In this way, the waterproofing and insulation of roofs is ensured at the highest level, the durability of the structures is increased and energy efficiency is ensured.



Place of Use Roof

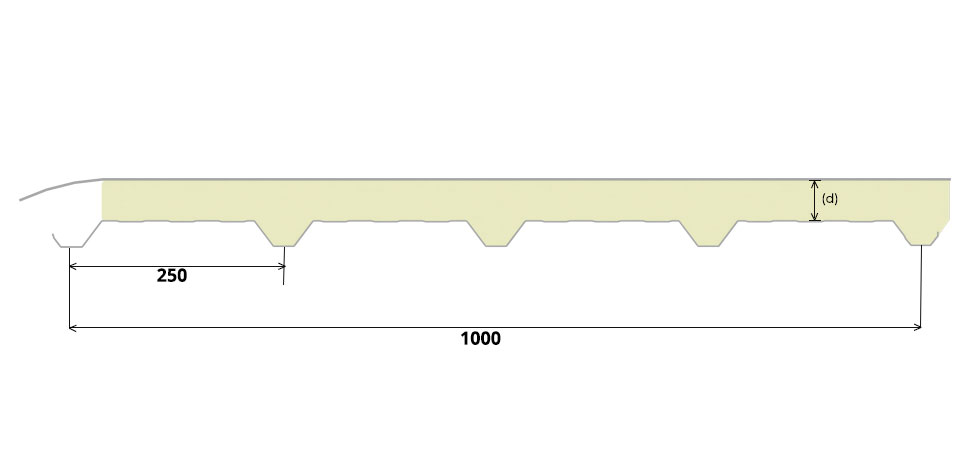

Useful Width 1000 mm
Minimum Length 2,4 m
Maximum Length Depends on transport conditions.
Polyurethane Density (EN 1602) 40 (±2) kg/m³
Polyurethane Thickness 40-50-60-80-100 mm
Flammability Class (EN13501)  B, s2, d0
Metal Type Prepainted Galvanized Steel Sheets
PVC Thickness 1,2 mm
Standard Bottom Sheet Thickness 0,50 - 0,60 mm
Unit Weight on the PVC Area 1,55 kg/m²  ±5%
PVC Standard Appearance Light gray, matt
PVC BGS PURLIN DISTANCE

Upper Membrane

(mm)

Bottom Sheet Thickness (mm)

 150 cm 200 cm 250 cm 300 cm 325 cm
1,2 0,50 232 126 80 56 -
1,2 0,60 272 158 100 63 -
PVC BGS PURLIN DISTANCE

Upper Membrane

(mm)

Bottom Sheet Thickness (mm)

 150 cm 200 cm 250 cm 300 cm 325 cm
1,2 0,50 232 126 80 56 -
1,2 0,60 272 158 100 63 -

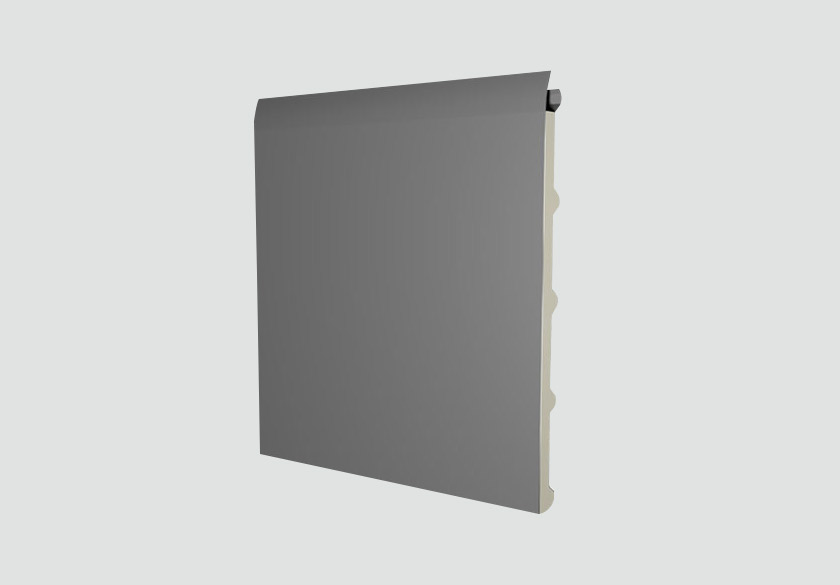

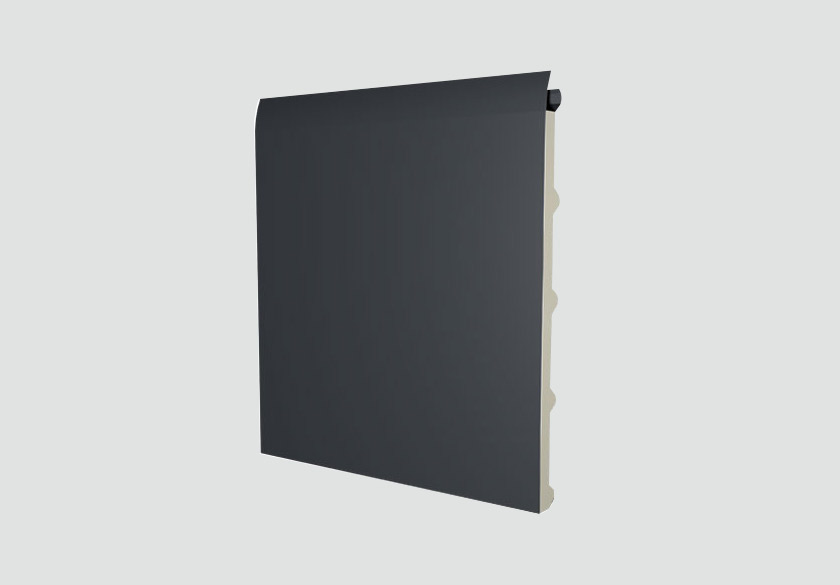

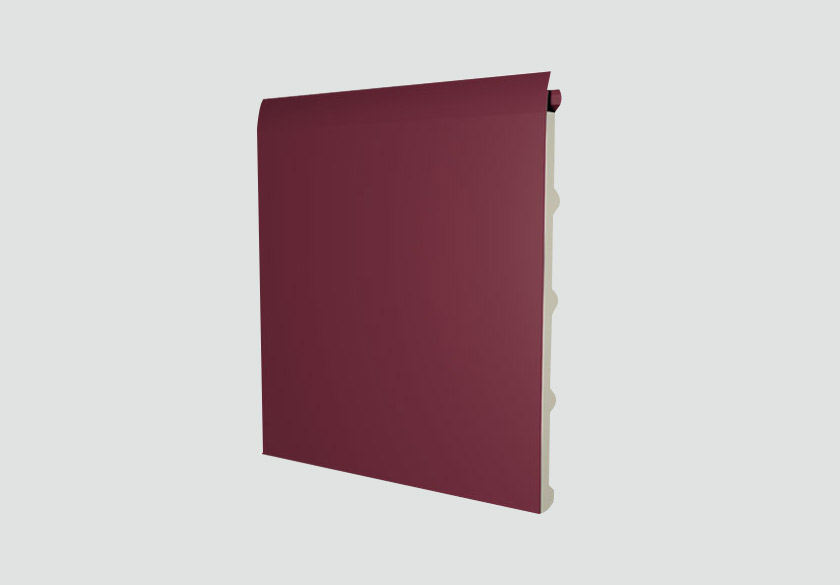

Coating Types

It offers high resistance to external environmental conditions, high flexibility and temperature balance. This type of paint has a wide range of uses and is among the most widely preferred. It is ideal for various purposes in interior and exterior spaces, offering a versatile solution.

It provides superior durability and high corrosion resistance against the challenging effects of the external environment. It is also resistant to chemical substances. This type of coating also offers strong protection against chemicals and UV rays. The permanence and brightness of its colors are at the highest level, distinguishing it from other types of coatings. For this reason, it is a preferred coating option for the roofs and facades of prestigious buildings.

It has a wonderfully malleable and flexible structure. It is resistant to moisture and abrasion and is preferred in applications that comply with food regulations. It also exhibits superior performance in cold and humid climate conditions.

Its application is carried out by lamination method. It is an ideal choice in areas requiring intensive shaping and flexibility. Its hygienic and easy-to-clean features provide an important advantage for applications that comply with food regulations.
