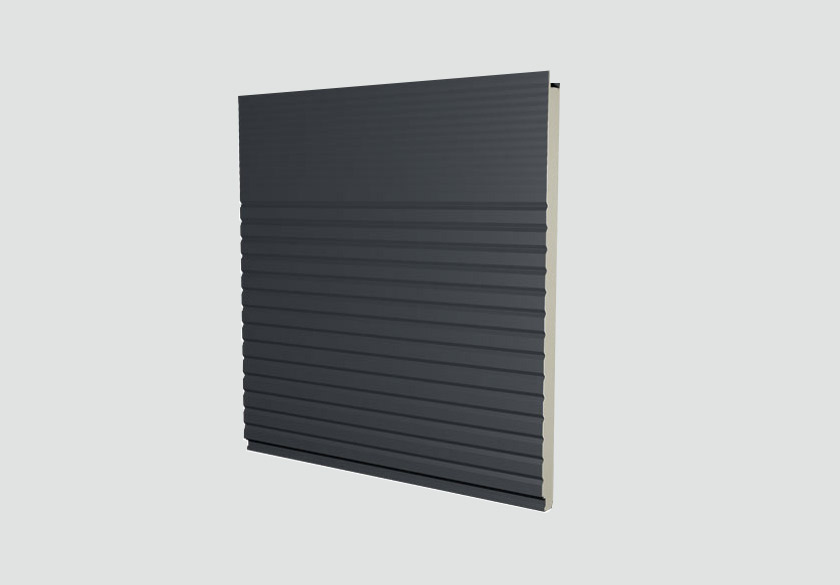

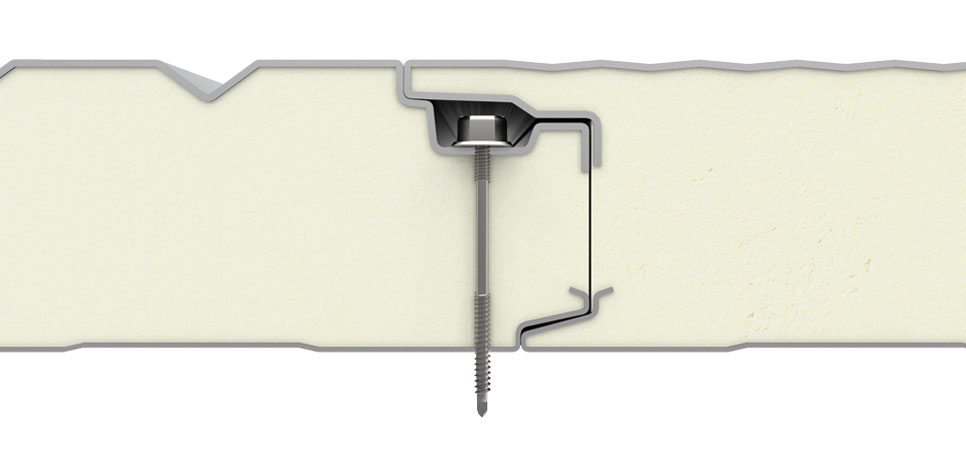

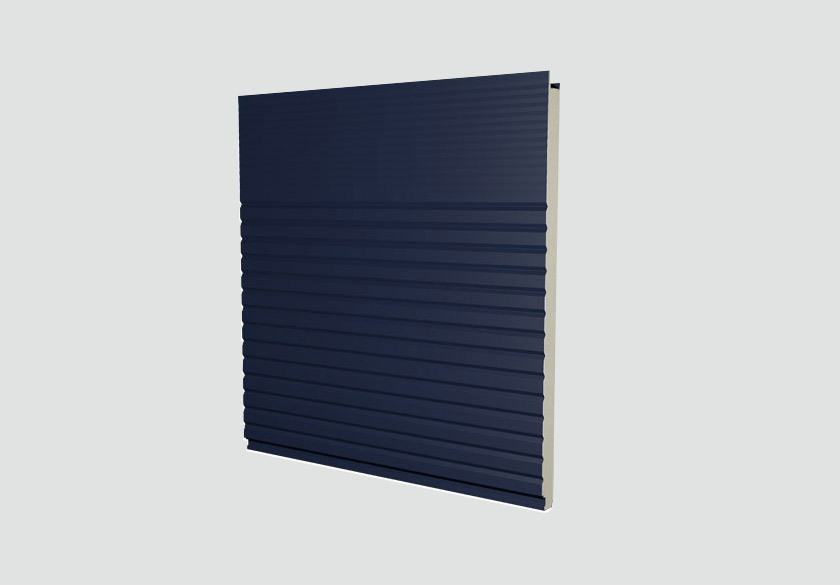

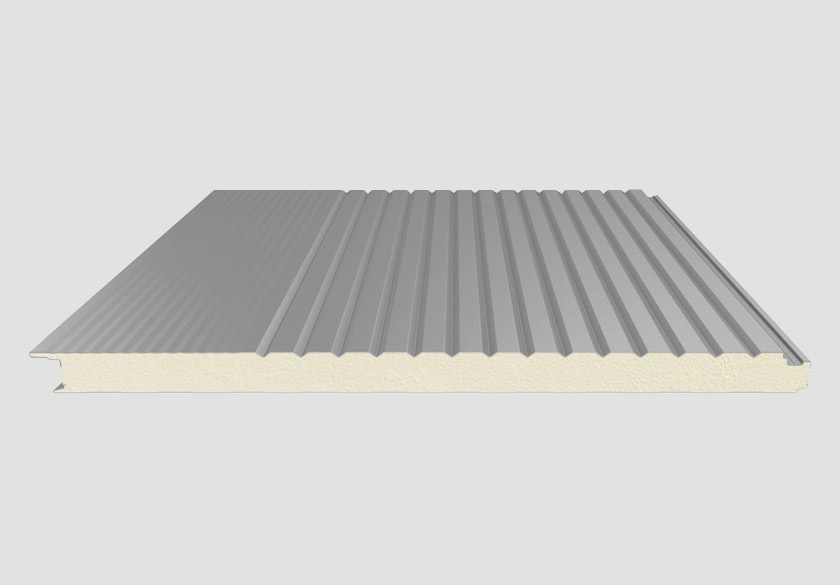

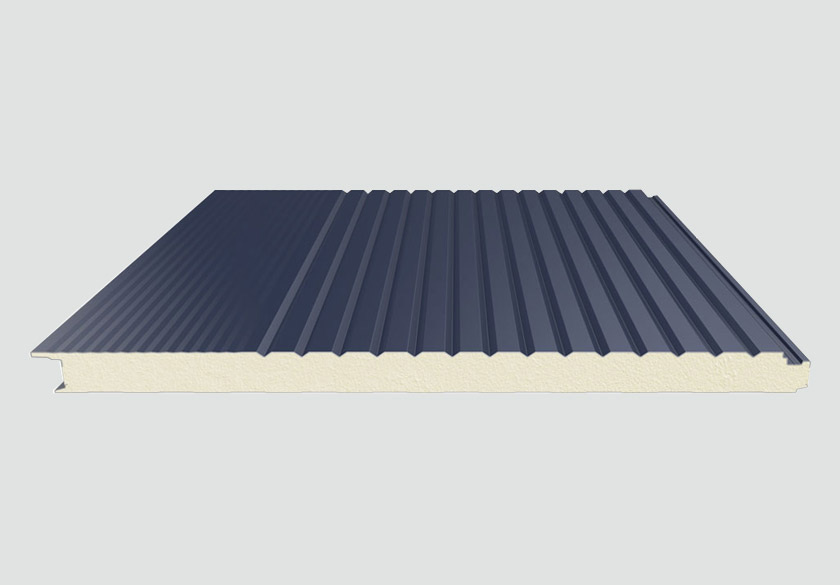

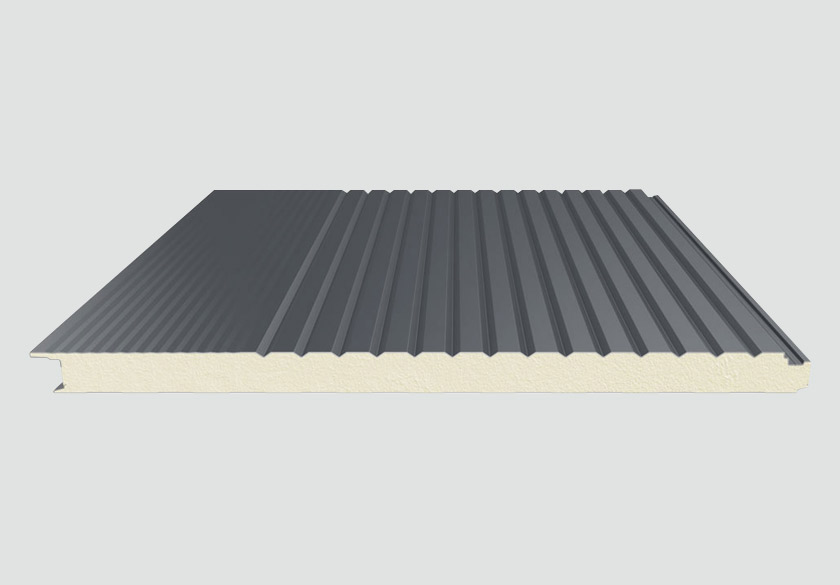

Concealed fastener V Facade Panel

Concealed fastener V Facade Panel

Our Hidden Screw V Facade Panels give your buildings a unique and aesthetic appearance. Our V panels are produced in various forms and color options requested by our customers, so they are presented ready for use. Thanks to its PUR insulation, it provides effective protection against external factors such as water, heat and sound. Additionally, thanks to its PIR insulation, it has high resistance to fire and increases safety in fire situations.



Place of  Use Facade

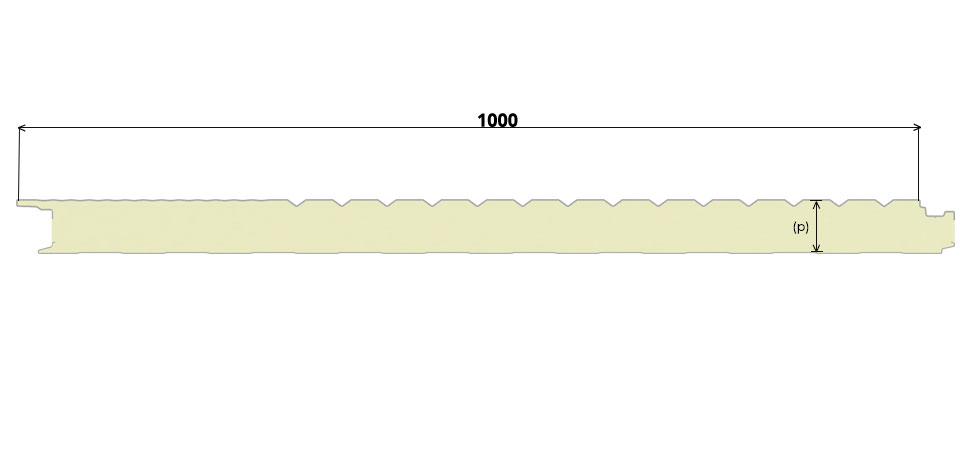

Useful Width 1000 mm
Minimum Length 2,4 m
Maximum Lenghth Depends on Shipping Conditions
Polyurethane Density (EN 1602) 40 (±2) kg/m³
Polyurethane Thickness 40-50-60-80 mm
Fire Classification (EN1350) B, s2, d0
Metal Type Painted Galvanized Sheet
Standard External Metal Thickness 0,50 mm
Standard External Metal Thickness 0,40 mm
PGSS PGSS PURLING SPACING

Top Sheet Thickness  (mm)

Bottom Sheet Thickness  (mm)

PUR

(mm)

 100 cm 150 cm 200 cm 250 cm
0,50 0,40 40 261 182 121 250
0,50 0,40 50 302 215 149 121
0,50 0,40 60 337 263 179 134

Coating Types

It offers high resistance to external environmental conditions, high flexibility and temperature balance. This type of paint has a wide range of uses and is among the most widely preferred. It is ideal for various purposes in interior and exterior spaces, offering a versatile solution.

It provides superior durability and high corrosion resistance against the challenging effects of the external environment. It is also resistant to chemical substances. This type of coating also offers strong protection against chemicals and UV rays. The permanence and brightness of its colors are at the highest level, distinguishing it from other types of coatings. For this reason, it is a preferred coating option for the roofs and facades of prestigious buildings.

It has a wonderfully malleable and flexible structure. It is resistant to moisture and abrasion and is preferred in applications that comply with food regulations. It also exhibits superior performance in cold and humid climate conditions.

Its application is carried out by lamination method. It is an ideal choice in areas requiring intensive shaping and flexibility. Its hygienic and easy-to-clean features provide an important advantage for applications that comply with food regulations.

As KRG Metal, we produce and sell roofing and building materials.
